Buyer Guide | Guangzhou Vantone Science & Technology Co., Ltd. | Model OD-006
Quick answer
Use an RGB linear outdoor wall light when a project needs a visible architectural line that can change color for hospitality ambience, events, themed spaces, or feature facades. Specify the normal white-light requirement separately and confirm length, power, control method, synchronization, weather protection, and scene behavior before ordering.
Where does RGB wall lighting add real value?

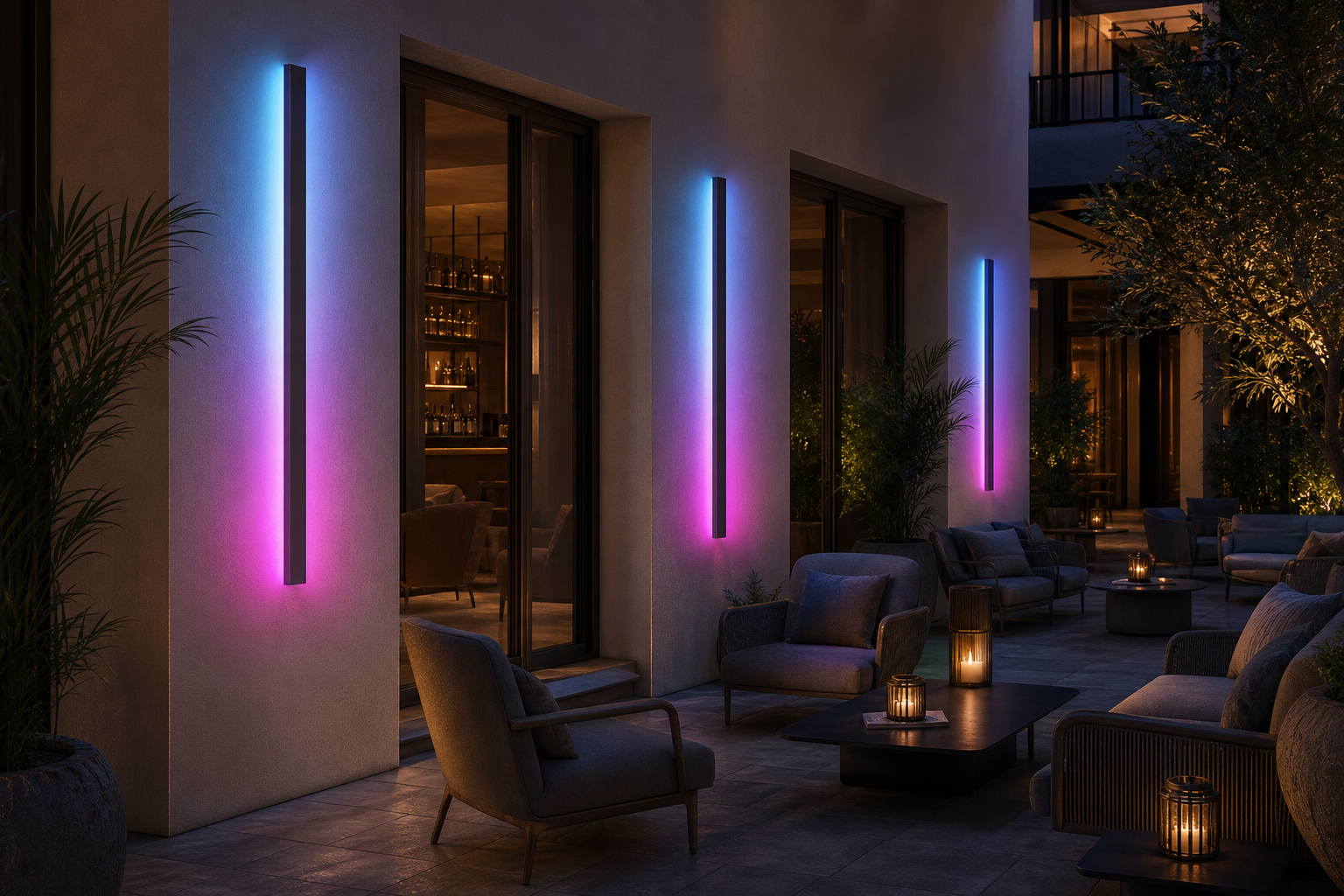

RGB is most useful where the lighting concept changes over time. Hotels, restaurants, lounges, entertainment venues, branded entrances, patios, and event facades can use programmed colors to support different moods or occasions.
For everyday circulation and visual comfort, a project may still need warm white or white light. OD-006 source materials show warm light, white light, and RGB options, but the exact control and combined-light behavior must be confirmed for the ordered configuration.
What sizes and powers are verified?
OD-006 is shown in nine lengths: 30, 40, 60, 80, 100, 120, 150, 200, and 240 centimeters. The matching power options are 9, 11, 19, 24, 30, 38, 45, 60, and 70 watts. The shown body width is 9 centimeters.
These options let the buyer coordinate fixture scale with doors, windows, columns, lounges, corridors, and large facade bays. The order schedule should list each length and power explicitly.
Why must the control method be confirmed?
RGB describes the light colors, not the communication protocol. A project must still define whether control is local, remote, app-based, DMX, or another system, and whether multiple fixtures must synchronize.
The supplied source set does not confirm one universal control protocol for OD-006. Buyers should request the wiring diagram, controller specification, maximum control distance, grouping behavior, and power-supply arrangement before integration.
How can a project avoid an overly decorative result?
Use a limited palette, slow transitions, consistent brightness, and clear zoning. Strong rainbow effects can distract from the architecture, while two or three coordinated colors often produce a more professional hospitality result.
Mock up the fixture on the actual wall and review scenes from guest areas, neighboring properties, and public roads. Confirm local rules where colored facade lighting may affect residents, drivers, or planning approval.
- Define normal white-light and event modes separately.
- Confirm controller and synchronization before ordering.
- Schedule exact lengths, powers, and quantities.
- Test color appearance on the real facade material.
Verified specification snapshot
| Model | OD-006 |
|---|---|
| Length Options | 30 / 40 / 60 / 80 / 100 / 120 / 150 / 200 / 240 cm |
| Power Options | 9 / 11 / 19 / 24 / 30 / 38 / 45 / 60 / 70W |
| Shown Body Width | 9 cm |
| Light Options | Warm white / White / RGB |
| Installation | Wall mounted |
Values above are limited to information confirmed in the supplied product materials. Final order specifications should be confirmed in the quotation.
Review the product
See the verified OD-006 product page for product images and the current specification summary.
Frequently asked questions
Is RGB the same as tunable white?
No. RGB creates colored light. Warm-white, white, or tunable-white behavior must be specified separately.
Does every OD-006 version use the same controller?
The source set does not confirm a universal protocol. Request the exact controller and wiring specification for the ordered configuration.
What is the longest shown version?
The verified size chart includes a 240 cm, 70W option.
Can several fixtures change color together?
Synchronization may be possible with the correct control system, but grouping and protocol must be confirmed before purchase.
