Buyer Guide | Guangzhou Vantone Science & Technology Co., Ltd. | Model OD-007
Quick answer
Select a solar linear outdoor wall light only after confirming that its integrated panel will receive enough direct daylight in the final mounting position. Match the fixture length to the facade, verify battery and LED performance for the required night duration, and confirm panel orientation, IP rating, materials, controls, and seasonal solar conditions.
What is distinctive about OD-007?
Vantone OD-007 integrates a polysilicon solar panel into the front of a long linear wall light. The source materials show a die-cast aluminum body, acrylic cover, IP65 rating, and automatic operation under dark conditions.
The available source range includes 20, 40, 60, 80, 100, 120, 150, and 200 centimeter lengths. The long format creates a strong architectural line without requiring a visible external power cable.
Why is sunlight exposure the first design check?
A solar fixture can only store the energy its panel receives. Deep eaves, north-facing walls in some regions, trees, neighboring buildings, dust, and seasonal sun angles can reduce charging even when the night-time location looks ideal.
Review the proposed wall in different seasons and during the actual charging hours. A sample test is recommended before committing to a large quantity, especially for long overnight operation or cloudy climates.
Which technical values still need confirmation?
The supplied images confirm the size range, main materials, IP65 rating, polysilicon panel, and dark-condition control. They do not provide a complete battery-capacity, LED-power, charging-time, or autonomy table.
For a project quotation, request battery chemistry and capacity, LED wattage, lumen output, charging time, operating time by mode, solar panel rating, control modes, replacement procedure, and expected performance under the destination climate.
Where can a solar linear wall light be used?

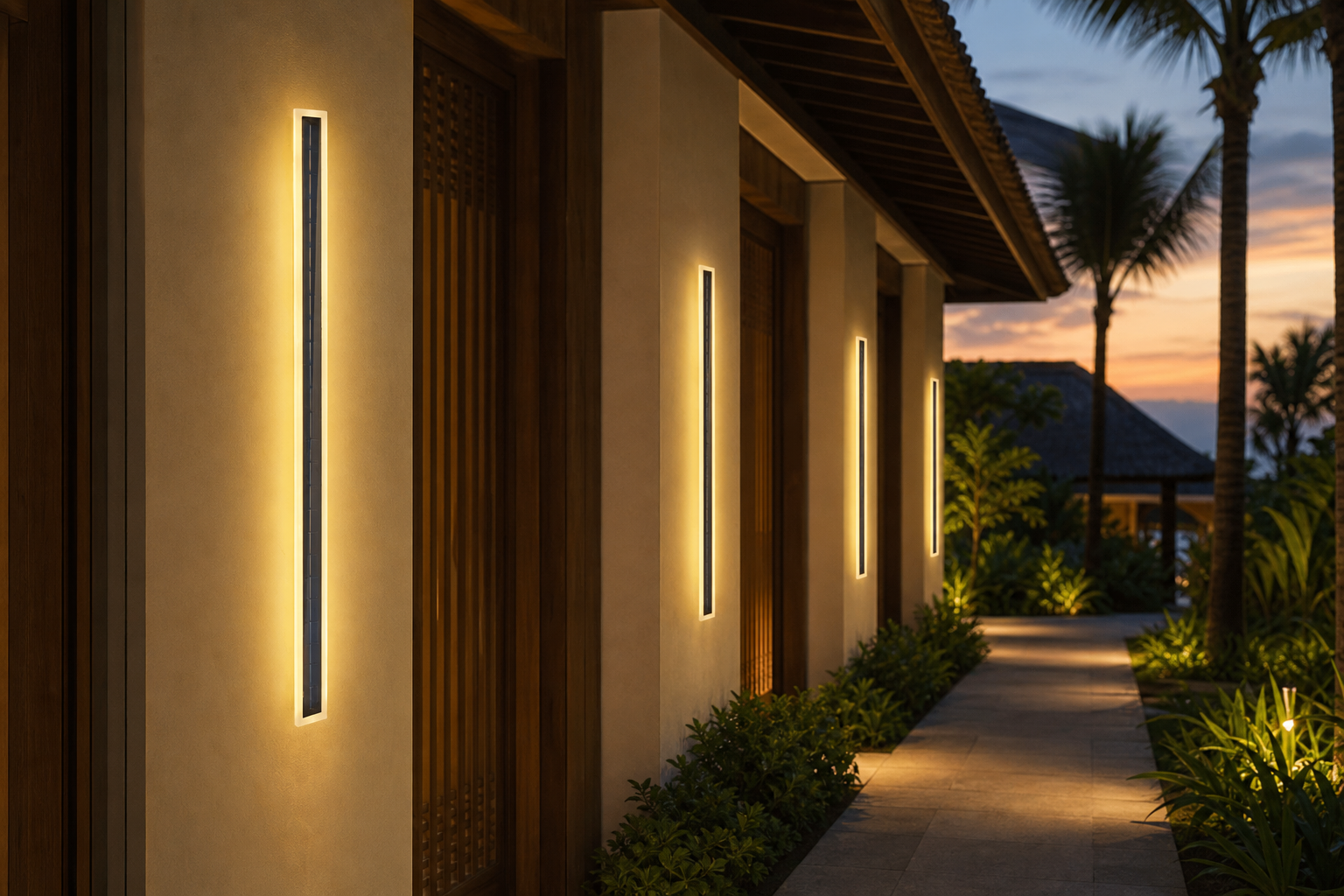

Potential applications include villa entrances, resort rooms, remote boundary walls, patios, courtyards, garden structures, and buildings where adding cable routes would be disruptive. The facade must still provide adequate solar exposure.
Keep nearby fixtures, trees, and architectural projections from shading the integrated panel. Cleaning access should be included in maintenance planning because dust on the panel can reduce charging.
- Survey direct sunlight at the exact wall position.
- Confirm winter and cloudy-weather operating requirements.
- Request battery and autonomy data for the ordered size.
- Plan safe access for panel cleaning.
Verified specification snapshot
| Model | OD-007 |
|---|---|
| Power Source | Integrated solar panel |
| Panel Type | Polysilicon |
| Length Options | 20 / 40 / 60 / 80 / 100 / 120 / 150 / 200 cm |
| Body / Cover | Die-cast aluminum / Acrylic |
| IP Rating | IP65 |
| Control | Automatic dark-condition operation |
Values above are limited to information confirmed in the supplied product materials. Final order specifications should be confirmed in the quotation.
Review the product
See the verified OD-007 product page for product images and the current specification summary.
Frequently asked questions
Will OD-007 work on a shaded wall?
Charging performance may be reduced in shade. The exact mounting position should be surveyed and sample-tested for direct daylight.
What is the longest shown version?
The source size chart includes a 200 cm version.
Does it switch on automatically at night?
The source materials describe automatic operation under dark conditions. Confirm the exact control mode in the quotation.
What battery capacity does it use?
Battery specifications are not confirmed in the supplied source set and should be requested for the exact ordered configuration.
