Buyer Guide | Guangzhou Vantone Science & Technology Co., Ltd. | Model OD-005
Quick answer
Specify a long linear LED outdoor wall light by matching fixture length and power to the wall scale, viewing distance, mounting orientation, required brightness, and electrical supply. For OD-005, verified options run from 30 cm and 9W to 240 cm and 70W, with a metal-and-acrylic body and AC 85–265V input.
Why does length matter in architectural wall lighting?

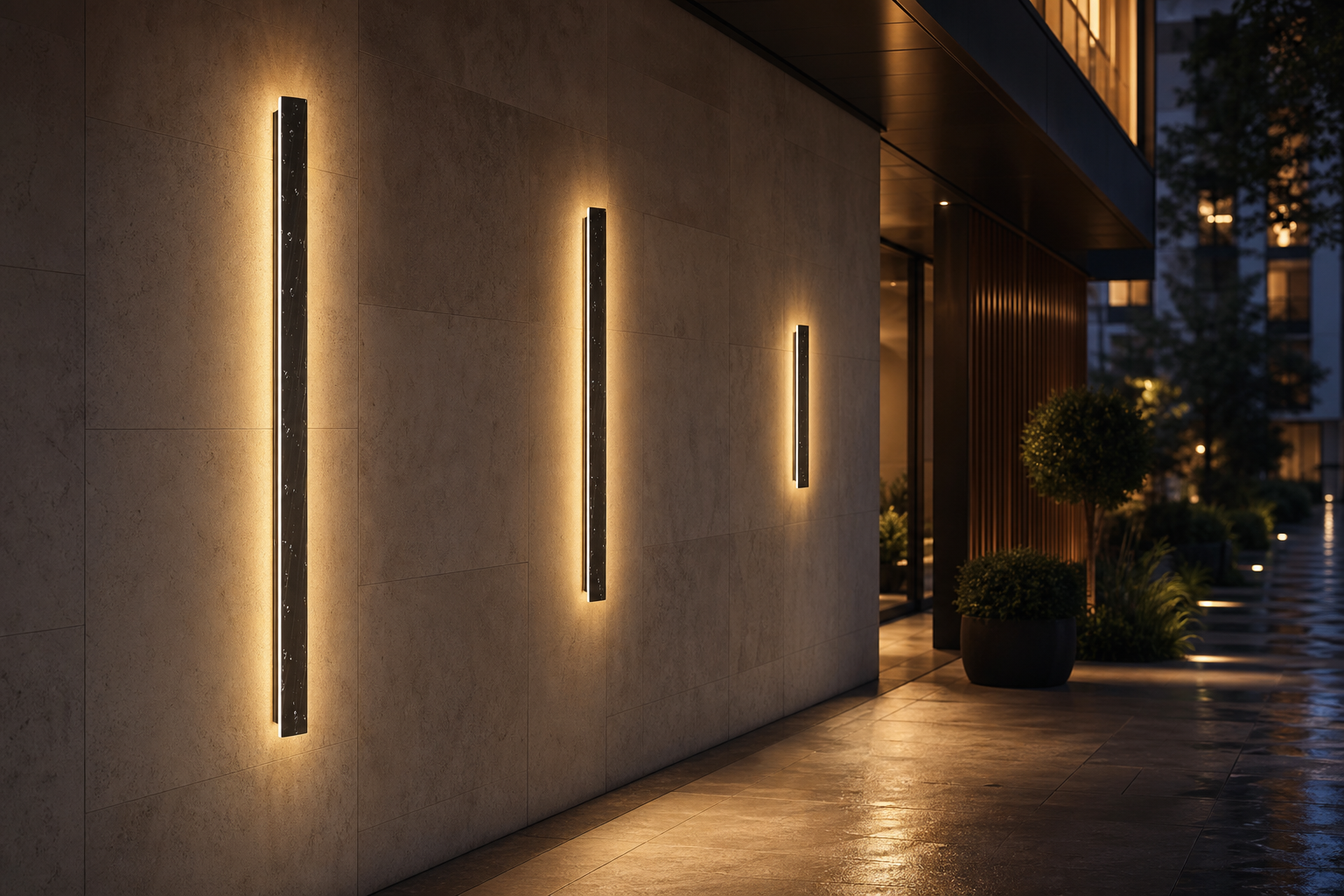

A linear wall light acts as an architectural line as well as a light source. Short versions can mark doors or smaller wall bays, while long versions can emphasize tall entrances, hotel facades, stair cores, and feature walls.
The longest fixture is not automatically the best choice. Project teams should compare the proposed length with wall height, nearby openings, human scale, viewing distance, and the spacing between fixtures.
What size and power options are verified for OD-005?
The OD-005 2005F source table pairs each length with a defined power: 30cm/9W, 40cm/11W, 60cm/19W, 80cm/24W, 100cm/30W, 120cm/38W, 150cm/45W, 200cm/60W, and 240cm/70W.
The listed body cross-section is 5 by 4 centimeters, and the material is metal plus acrylic. The source materials also show AC 85–265V input and 3000K, 4000K, and 6000K color-temperature options.
Should the fixture be mounted vertically or horizontally?
Vertical installation emphasizes height and works well beside doors, windows, columns, and tall facade bays. Horizontal installation can mark a headboard, corridor wall, mirror, or wide architectural opening when the ordered mounting system supports that orientation.
Before approving horizontal use, confirm drainage, cable entry, fixing points, and manufacturer instructions for the exact model. Do not assume that every long fixture can be rotated without affecting installation or weather protection.
How should buyers write the RFQ?
State the model, required length and power, quantity by size, color temperature, input voltage, vertical or horizontal orientation, wall material, mounting height, finish, destination country, packaging needs, and OEM requirements.
For a mixed-size project, provide an elevation schedule. This prevents confusion between similar-looking fixtures and lets the supplier prepare quantities, drivers, packing, and labels by exact length.
- Confirm a sample at the intended mounting height.
- Review glare from close viewing positions.
- Coordinate color temperature across the project.
- Allow for handling and packaging of 200–240 cm fixtures.
Verified specification snapshot
| Model | OD-005 / 2005F |
|---|---|
| Length / Power Range | 30cm/9W to 240cm/70W |
| Body Cross-Section | 5 × 4 cm |
| Material | Metal + acrylic |
| Input Voltage | AC 85–265V |
| Color Temperature | 3000K / 4000K / 6000K |
Values above are limited to information confirmed in the supplied product materials. Final order specifications should be confirmed in the quotation.
Review the product
See the verified OD-005 product page for product images and the current specification summary.
Frequently asked questions
What is the longest verified OD-005 option?
The source table shows a 240 cm version rated at 70W.
Which length uses 30W?
The verified table pairs the 100 cm length with 30W.
What material is used?
The product is specified with a metal body and acrylic light cover.
Can one project use several lengths?
Yes. A mixed-size schedule can coordinate different facade bays, provided each length and quantity is clearly listed in the quotation.
