Buyer Guide | Guangzhou Vantone Science & Technology Co., Ltd. | Model OD-004
Quick answer
A four way LED outdoor wall light shapes a facade by projecting four controlled beams around a compact fixture. It works best as decorative architectural lighting on uncluttered walls, where fixture spacing, surface texture, beam overlap, mounting height, and color temperature are coordinated before installation.
What makes a four-way wall light different?
Unlike a conventional wall light that sends most output in one or two directions, a four-way fixture creates a cross-like or diagonal pattern around the body. The wall becomes part of the visual effect, so surface quality and spacing are as important as the fixture itself.
Vantone OD-004 uses a compact aluminum body with an integrated LED source. The source range shows black and white finishes, allowing the fixture to either contrast with or visually blend into the facade.
Which surfaces produce the clearest beam pattern?
Smooth matte walls generally reveal the beam edges most clearly. Coarse stone, deep brick joints, projecting trim, or glossy surfaces can break up or reflect the pattern. A sample installation is the safest way to evaluate the real wall material.
The final pattern also depends on ambient light and viewing distance. A beam that looks strong on a dark garden wall may appear more subtle on a brightly illuminated commercial facade.
How should multiple fixtures be spaced?
Spacing should be designed from the beam pattern rather than from fixture width alone. Too-close spacing can create confusing overlap; very wide spacing can make the elevation feel disconnected.

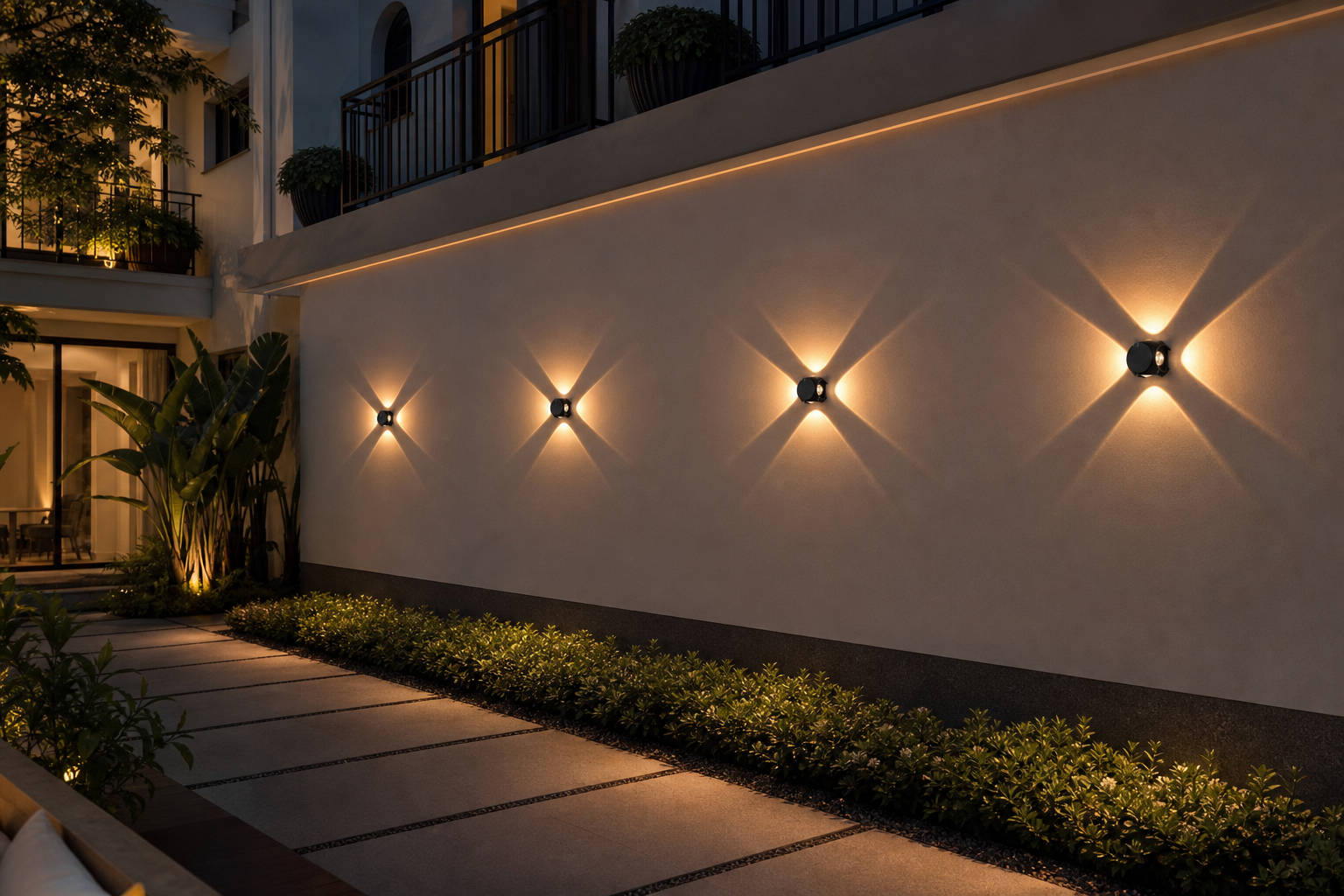

For hotels, villas, courtyards, and boundary walls, align the fixtures with architectural modules such as columns, windows, doors, or landscape bays. Keep mounting heights consistent unless the design intentionally follows steps or level changes.
- Test one fixture on the actual wall surface.
- Review the facade from the main night-time viewing direction.
- Confirm beam consistency across the production batch.
- Coordinate the finish with wall color and surrounding metalwork.
What should buyers confirm before ordering?
Request the exact dimensions, wattage, input voltage, color temperature, beam configuration, driver arrangement, finish, quantity, and installation drawing for the proposed order. These details were not all present in the supplied source set and should be confirmed for the final quotation.
The specification should also state the project location, wall material, mounting height, operating hours, and any OEM finish or packaging requirements.
Verified specification snapshot
| Model | OD-004 |
|---|---|
| Product Type | Four-way architectural wall light |
| Light Source | Integrated LED |
| Body Material | Aluminum |
| Finish Options | Black / White |
| Installation | Wall mounted |
Values above are limited to information confirmed in the supplied product materials. Final order specifications should be confirmed in the quotation.
Review the product
See the verified OD-004 product page for product images and the current specification summary.
Frequently asked questions
Does OD-004 create four separate beams?
Yes. The fixture is designed to create a four-direction decorative wall pattern around its compact body.
Which wall finish is best for the pattern?
A smooth matte surface usually shows the beam geometry most clearly, but an on-site sample is recommended.
Can fixtures be installed in a row?
Yes. Repeated fixtures can create a strong facade rhythm when spacing and beam overlap are tested first.
Are wattage and dimensions fixed?
The supplied source set does not confirm those values. Request the exact ordered specification from Vantone before project approval.
