A slim LED street light can suit an urban retrofit because its compact profile reduces visual bulk, fits contemporary streetscapes and can simplify handling on existing poles or wall brackets. Slimness is not a performance metric by itself: the housing must still manage heat, protect the optical system and provide a secure mounting interface.
Key facts for project buyers
- STL-004 uses a slim aluminum housing with a rounded optical face.
- Confirmed protection is IP65 for outdoor street-lighting use.
- The structure includes an LED array, optical lens, protective cover and mounting arm.
- A compact profile can improve visual integration on residential and mixed-use streets.
- Retrofit approval still requires photometric, mechanical, thermal and electrical verification.

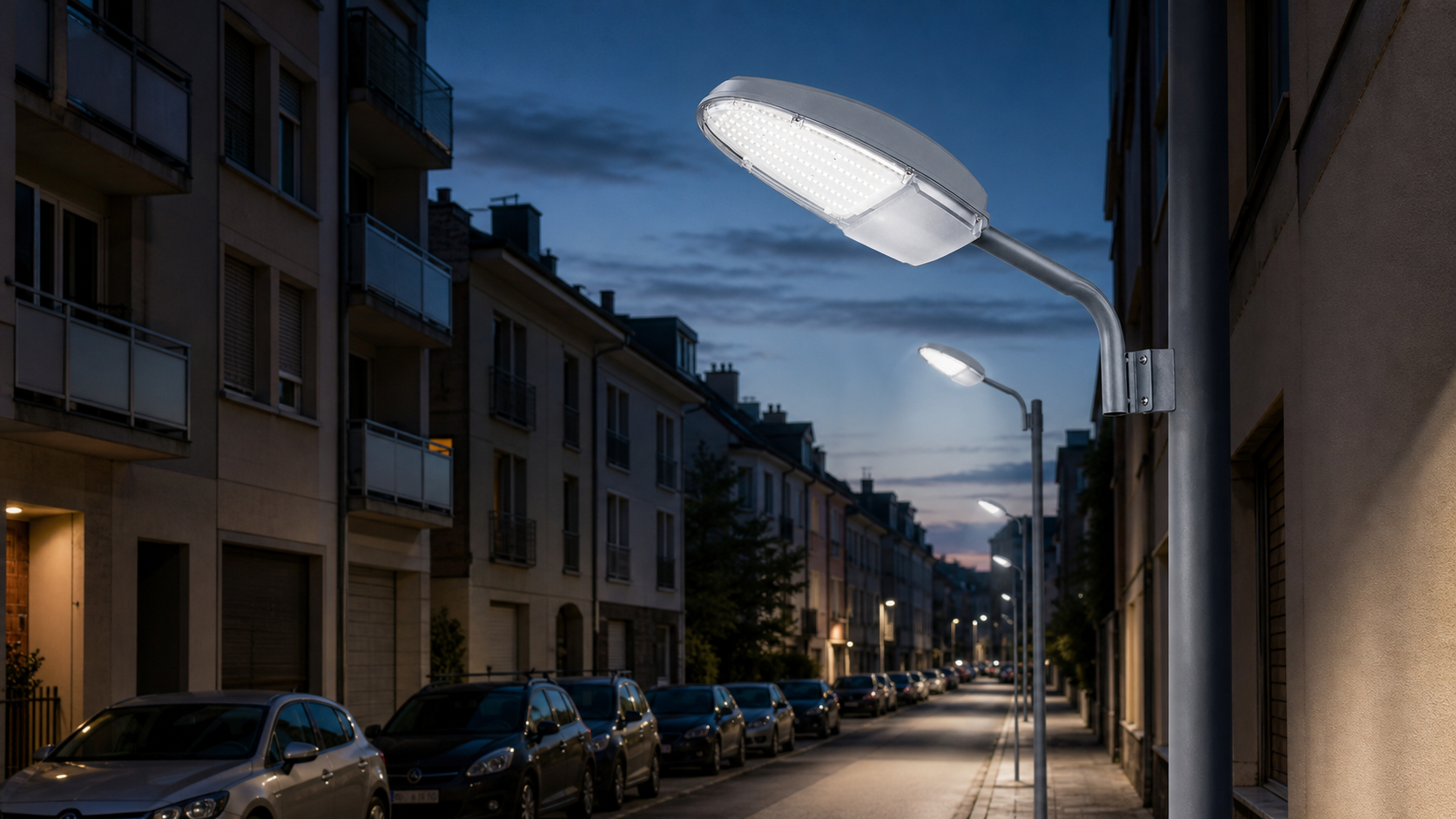

What does a slim housing change in an urban streetscape?
Street lights are repeated objects that influence the daytime appearance of a road. A thinner profile can reduce visual clutter, especially on narrow residential streets, building façades, parking areas and public spaces with close viewing distances.

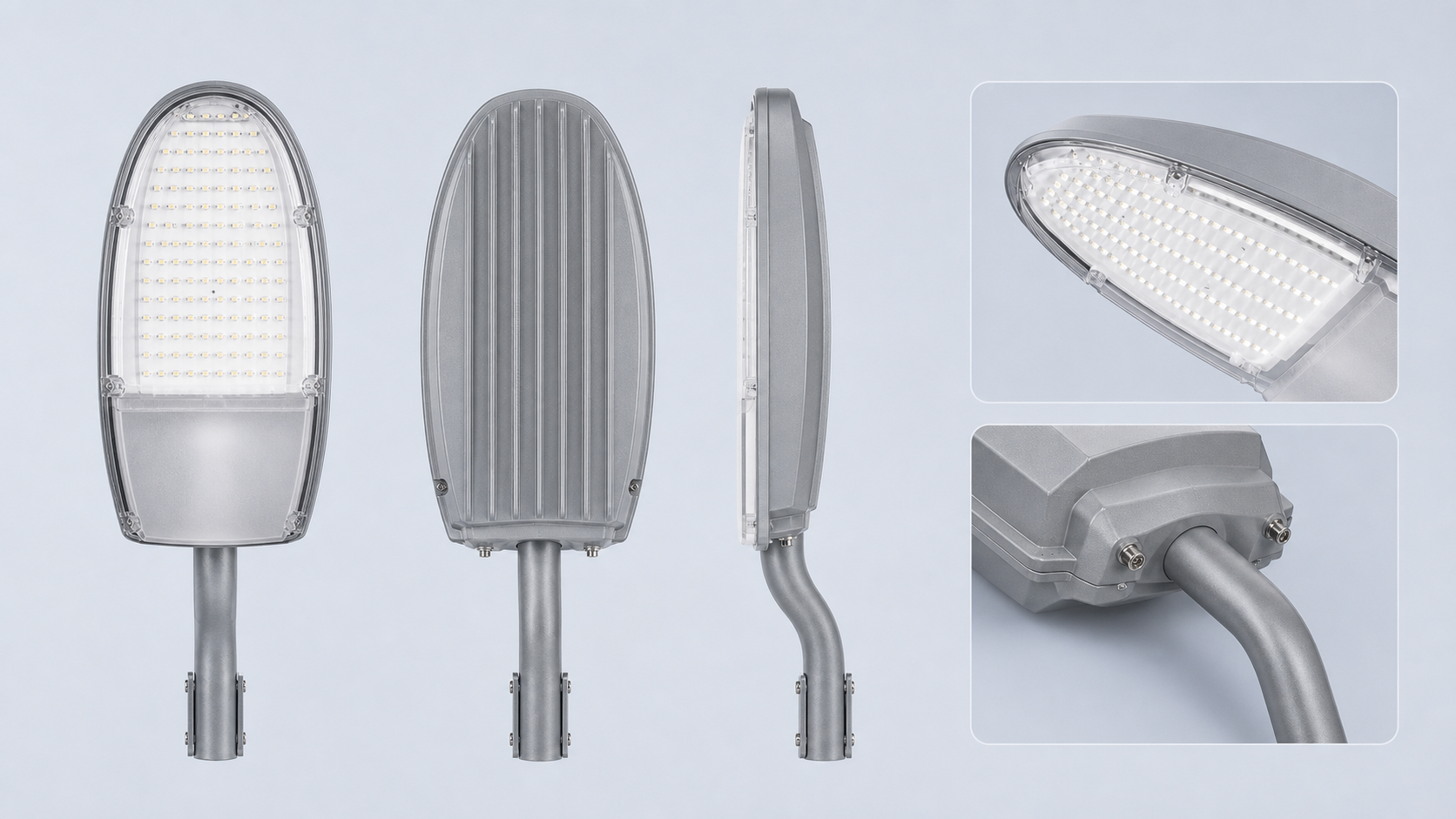

The product should be reviewed from front, rear and side viewpoints. A fixture that appears compact in a catalog front view may still have a deep driver compartment or an awkward bracket. The STL-004 material shows a streamlined oval front and slim side profile.
Can slim street lights still manage heat?
Yes, when the aluminum housing provides an effective thermal path and sufficient external surface area. LED and driver temperatures depend on power, ambient temperature, internal layout and airflow—not simply on visible thickness.
For a project, request the operating-temperature range, thermal test data and driver details for the quoted configuration. Avoid assuming that a heavier or thicker body is automatically better, or that a slim body is automatically cooler.
How does IP65 support urban outdoor use?
IP65 indicates dust-tight construction and protection against water jets under the relevant test conditions. It is a common requirement for streets, parking areas and public spaces where fixtures are exposed to rain and cleaning.
Correct installation protects the rating. Cable glands, protective covers, seals and screws must remain intact. Wall-bracket installations should prevent water from tracking along the cable into the enclosure.
- Match the cable gland to the cable diameter.
- Inspect the protective cover and seal before installation.
- Avoid drilling or modifying the housing on site.
- Use a bracket and fasteners suitable for wind and vibration.
- Record enclosure access in the maintenance plan.
What should be checked when reusing existing poles?
Measure the pole arm or wall bracket, including diameter, insertion depth, bolt pattern, outreach and tilt. Check corrosion and structural condition. A lightweight-looking product still applies wind load and must be fixed securely.
Confirm that the curved mounting arm places the optical face in the intended orientation. A visual match is not enough; the approved photometric calculation must use the actual mounting geometry.
How should an urban retrofit be evaluated?
Combine daytime appearance with nighttime performance. Review scale, finish and pole integration during the day, then measure illuminance, uniformity and glare after dark. Include nearby windows, trees, parked vehicles and pedestrian sight lines.
A small pilot section is valuable before a large rollout. It can reveal bracket issues, cable routing constraints and resident concerns while changes are still inexpensive.
- Photometric layout for the exact road and mounting arrangement.
- Pole or wall-bracket survey with dimensions and condition.
- Input voltage, controls and surge protection.
- CCT consistency with surrounding urban lighting.
- Sample installation and nighttime acceptance review.
Confirmed product data
| Confirmed item | STL-004 data |
|---|---|
| Product type | Slim LED street light |
| IP rating | IP65 |
| Housing | Aluminum |
| Optics | Optical lens |
| Front protection | Protective cover |
| Mounting | Mounting arm / wall bracket |
| Applications | Urban roads, residential streets, parking lots and public spaces |
Project recommendation
Use STL-004 where a compact daytime profile and standard outdoor protection are important, then confirm the exact photometric and mechanical configuration. Send road dimensions, mounting details, target performance, voltage, quantity and finish requirements for review.
View the STL-004 Slim IP65 LED Street Light product page and confirmed specifications.
Frequently asked questions
Are slim LED street lights less durable?
Not necessarily. Durability depends on material, sealing, thermal design, mounting and test evidence. The confirmed STL-004 housing is aluminum with IP65 protection.
Can STL-004 be wall mounted?
The confirmed product data includes mounting-arm and wall-bracket applications, subject to a structurally suitable bracket and correct aiming.
Is IP65 suitable for residential streets?
IP65 is commonly used for outdoor street lighting, provided the fixture and cable entry are installed correctly and the project does not require a higher ingress rating.
What is the main benefit of a slim street-light housing?
The main benefit is reduced visual bulk and easier integration into modern urban environments, while thermal and optical performance still need separate verification.
