JY-002 High Bay LED Lamp 60W-240W Guide

Quick Answer

The JY-002 high bay LED lamp family covers confirmed 60W, 100W, 150W, 200W and 240W engineering models, plus 100W to 240W flicker-free or sensor options. This UFO LED high bay is suitable for LED warehouse lighting, but higher wattage is not automatically the correct choice. Buyers should combine mounting height, illuminance, spacing, dimensions, weight and controls in one lighting calculation.

JY-002 Key Product Facts

60W to 240W engineering-model range
100W to 240W flicker-free or sensor options
IP65 enclosure rating
Aluminum lamp body with radial heat-dissipation structure
Three-year engineering-model and five-year option warranty rows

Original rear view of JY-002 industrial UFO LED high bay light heat sink and cable — The JY-002 rear view shows its radial aluminum heat-dissipation body and hanging point.

What Is High-Bay Lighting?

The Illuminating Engineering Society defines high-bay lighting as interior lighting where the roof trusses or ceiling are more than approximately 6.1 meters (20 feet) above the floor. That definition describes the space, not the correct wattage for every project. A buyer still needs mounting height, target illuminance, spacing and photometric distribution before approving a layout. Source: Illuminating Engineering Society.

Where Does JY-002 Fit?

JY-002 is intended for factories, production halls and LED warehouse lighting projects that need several power choices within one UFO high bay light family. A practical procurement decision starts with the task area and ceiling geometry, then checks the fixture configuration against structural, electrical and optical requirements.

JY-002 Product Specifications

Version	Power	Dimensions	Weight	Warranty
Engineering	60W	Ø280 × H120 mm	2 kg	3 years
Engineering	100W	Ø280 × H120 mm	2 kg	3 years
Engineering	150W	Ø330 × H120 mm	2.5 kg	3 years
Engineering	200W	Ø380 × H130 mm	4.2 kg	3 years
Engineering	240W	Ø380 × H130 mm	4.5 kg	3 years
Flicker-free / sensor	100W	Ø280 × H120 mm	2 kg	5 years
Flicker-free / sensor	150W	Ø330 × H120 mm	2.5 kg	5 years
Flicker-free / sensor	200W	Ø380 × H130 mm	4.2 kg	5 years
Flicker-free / sensor	240W	Ø380 × H130 mm	4.5 kg	5 years

For a project quotation, confirm any specification not listed here—especially electrical, optical and control data—for the exact configuration being ordered.

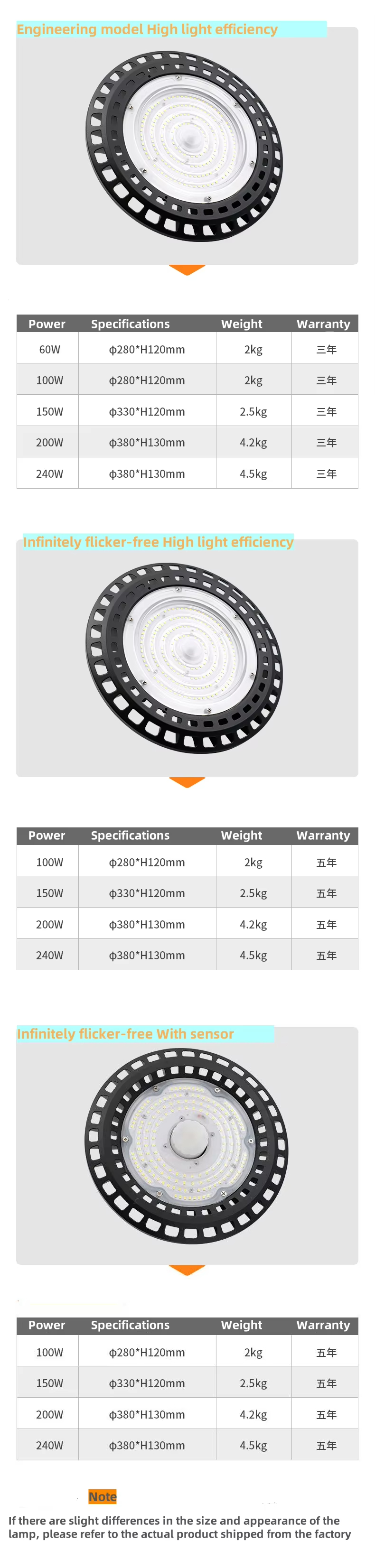

Original JY-002 60W to 240W dimensions weight and warranty specification chart — JY-002 engineering, flicker-free and sensor configurations are listed with dimensions, weight and warranty.

How Should a Buyer Evaluate This Model?

Decision Point	Recommended Check
Power family	Use 60W-240W as configuration choices, not as a substitute for a lighting calculation.
Fixture size	Check Ø280, Ø330 or Ø380 mm clearance against ceiling services and mounting hardware.
Fixture weight	Confirm the support point for units ranging from 2 kg to 4.5 kg.
Control option	State clearly whether the project needs an engineering, flicker-free or sensor configuration.

The U.S. Department of Energy advises commercial and industrial lighting buyers to compare like products, review manufacturer performance data and photometric information, and avoid over-lighting a space. These principles are useful for any B2B high-bay quotation, even when local codes and project targets differ. Source: U.S. Department of Energy FEMP.

What Must Be Confirmed Before Ordering?

Lumen output, efficacy and photometric distribution for each selected wattage
Input voltage, driver details, power factor, surge protection and dimming protocol
Sensor type, detection settings and exact meaning of the quoted flicker-free option
Color temperature, CRI, certificates, ambient-temperature limits and lead time

IP ratings are classified under IEC 60529, the international standard for degrees of protection provided by enclosures. The product materials state IP65, but buyers should request the applicable test or certification documentation when a tender requires formal evidence. Source: IEC 60529.

Recommended RFQ Information

Send the project country, supply voltage, ceiling or mounting height, target area, required illuminance, operating hours, quantity, control needs and any certification requirements. For a warehouse, include aisle dimensions and rack height. For a workshop or factory, identify task areas and any dust, moisture or temperature constraints.

FAQ

Which JY-002 wattage should a warehouse choose?

There is no universal wattage answer. Start with mounting height, spacing, aisle layout and target illuminance, then compare the photometric data for the 60W-240W options.
