JY-001 UFO High Bay Light Warehouse Guide

Quick Answer

The JY-001 UFO high bay light is a flexible option for buyers comparing high bay LED lights for warehouses, workshops and other large indoor spaces. Its confirmed strengths are a die-cast aluminum housing, IP65 protection and multiple hanging or bracket options. Final LED warehouse lighting quantity and spacing should be based on mounting height, target illuminance and a project-specific layout.

JY-001 Key Product Facts

UFO-shaped industrial pendant design
Die-cast aluminum housing for heat dissipation
IP65 enclosure rating
Chain, ceiling, bracket and fixed hanging options
Black and white housing options

Original JY-001 UFO LED high bay light product and packaging images — JY-001 product, production and packaging views show the UFO housing and circular optical face.

What Is High-Bay Lighting?

The Illuminating Engineering Society defines high-bay lighting as interior lighting where the roof trusses or ceiling are more than approximately 6.1 meters (20 feet) above the floor. That definition describes the space, not the correct wattage for every project. A buyer still needs mounting height, target illuminance, spacing and photometric distribution before approving a layout. Source: Illuminating Engineering Society.

Where Does JY-001 Fit?

JY-001 is intended for LED warehouse lighting, high bay LED shop lights, supermarkets, stadium support areas, shipyards and mining facilities. A practical procurement decision starts with the task area and ceiling geometry, then checks the fixture configuration against structural, electrical and optical requirements.

JY-001 Product Specifications

Item	Confirmed Value
Product Type	UFO LED high bay light
Housing Material	Die-cast aluminum
IP Rating	IP65
Installation	Chain, ceiling, bracket or fixed hanging
Applications	Workshop, supermarket, stadium, warehouse, shipyard and mining site
Housing Colors Shown	Black and white

For a project quotation, confirm any specification not listed here—especially electrical, optical and control data—for the exact configuration being ordered.

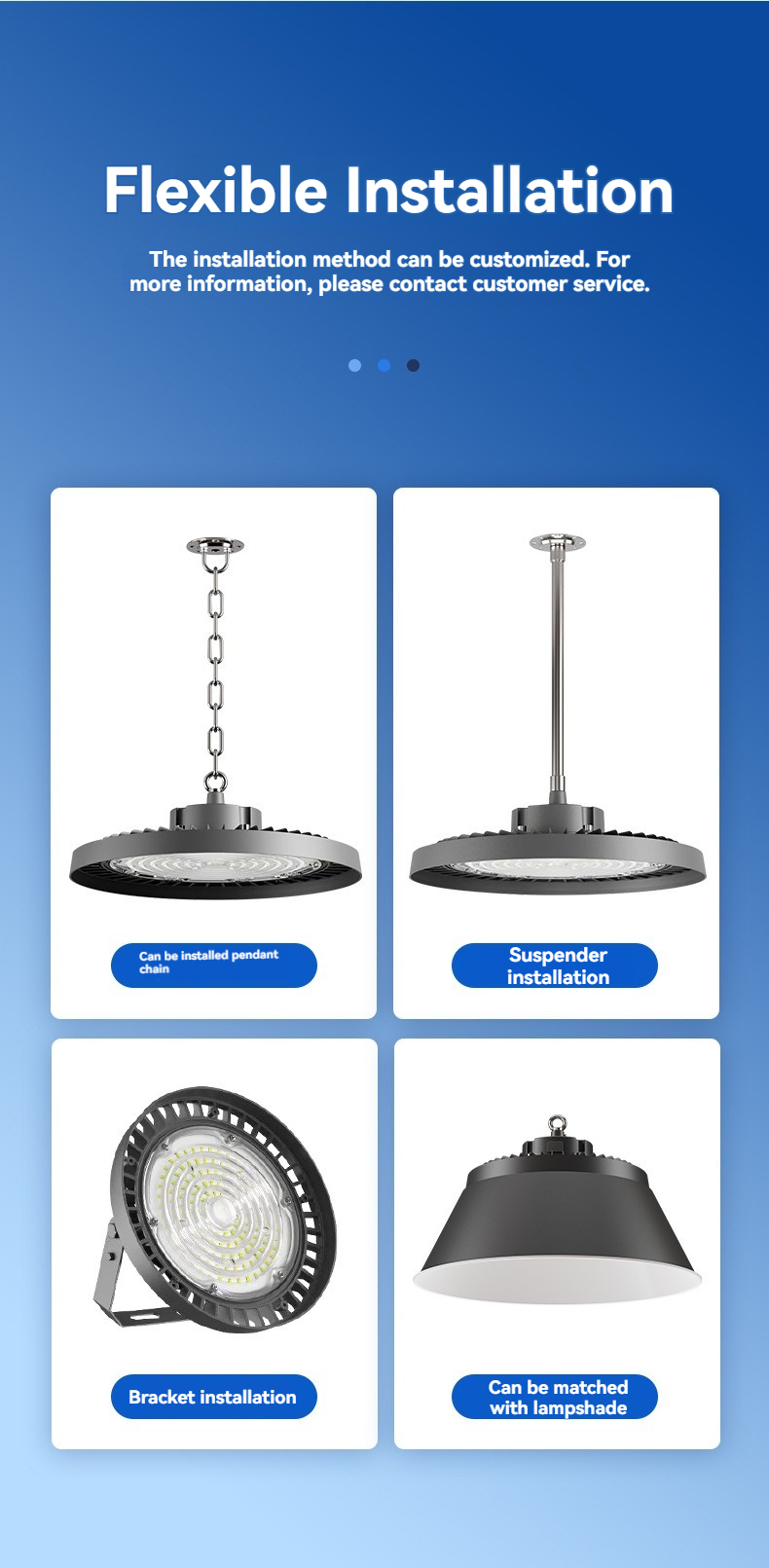

Original JY-001 high bay light chain ceiling bracket and fixed installation options — JY-001 supports chain, ceiling, bracket and fixed hanging approaches for different project structures.

How Should a Buyer Evaluate This Model?

Decision Point	Recommended Check
Mounting method	Match chain, ceiling, bracket or fixed hanging hardware to the building structure.
Mounting height	Use the real ceiling height and working-plane target when requesting a layout.
Environment	Confirm whether dust, moisture, wash-down or elevated ambient temperature affects the installation.
Housing color	Choose black or white only after confirming availability for the required configuration.

The U.S. Department of Energy advises commercial and industrial lighting buyers to compare like products, review manufacturer performance data and photometric information, and avoid over-lighting a space. These principles are useful for any B2B high-bay quotation, even when local codes and project targets differ. Source: U.S. Department of Energy FEMP.

What Must Be Confirmed Before Ordering?

Available wattage, lumen output and efficacy for the exact quotation
Input voltage, driver brand, power factor, surge protection and dimming option
Color temperature, CRI, beam distribution and photometric file
Ambient-temperature limits, certificates, warranty and lead time

IP ratings are classified under IEC 60529, the international standard for degrees of protection provided by enclosures. The product materials state IP65, but buyers should request the applicable test or certification documentation when a tender requires formal evidence. Source: IEC 60529.

Recommended RFQ Information

Send the project country, supply voltage, ceiling or mounting height, target area, required illuminance, operating hours, quantity, control needs and any certification requirements. For a warehouse, include aisle dimensions and rack height. For a workshop or factory, identify task areas and any dust, moisture or temperature constraints.

FAQ

Is JY-001 suitable for a warehouse?

Yes. JY-001 is designed for warehouse and workshop lighting. The final layout should consider ceiling height, aisle geometry, target illuminance and optical distribution.

Does JY-001 support more than one installation method?

Yes. Available approaches include chain, ceiling, bracket and fixed hanging installation. Confirm the required hardware with the ordered version.

Which wattage should I choose?

Share the mounting height, target illuminance and project dimensions with Vantone so the appropriate wattage, lumen output and photometric file can be confirmed for the quotation.
