JY-003 High Bay LED Shop Light Installation Guide

Quick Answer

The JY-003 high bay LED light is a shallow round die-cast platform for buyers comparing high bay LED shop lights and industrial bay lights. It has confirmed hook and ring installation methods, IP65 protection, a high-permeability optical mask and several back-style choices. The mounting point must be rated for the final fixture, while electrical and photometric performance should be confirmed before layout approval.

JY-003 Key Product Facts

Integrated die-cast aluminum housing
IP65 enclosure rating
High-permeability optical mask
Hook and ring installation methods
Common stripe back plus two optional back styles shown

Original JY-003 die-cast LED high bay light front and rear product views — JY-003 front and rear views show the optical face and integrated die-cast housing.

What Is High-Bay Lighting?

The Illuminating Engineering Society defines high-bay lighting as interior lighting where the roof trusses or ceiling are more than approximately 6.1 meters (20 feet) above the floor. That definition describes the space, not the correct wattage for every project. A buyer still needs mounting height, target illuminance, spacing and photometric distribution before approving a layout. Source: Illuminating Engineering Society.

Where Does JY-003 Fit?

JY-003 is intended for workshops, warehouses, factories and industrial projects comparing high bay LED shop lights with a shallow round body. A practical procurement decision starts with the task area and ceiling geometry, then checks the fixture configuration against structural, electrical and optical requirements.

JY-003 Product Specifications

Item	Confirmed Value
Product Type	LED high bay light
Housing	Integrated die-cast aluminum
IP Rating	IP65
Light Source	LED chip
Optical Cover	High-permeability optical mask
Installation	Hook or ring
Back Styles Shown	Common stripe style, optional 1 and optional 2
Applications	Workshop, warehouse, stadium, factory and project lighting

For a project quotation, confirm any specification not listed here—especially electrical, optical and control data—for the exact configuration being ordered.

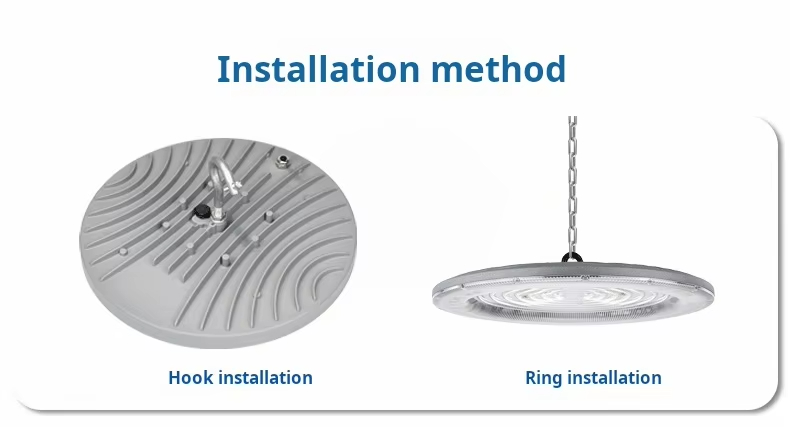

Original JY-003 LED high bay hook and ring installation method graphic — JY-003 supports both hook installation and ring installation for suspended high-bay projects.

How Should a Buyer Evaluate This Model?

Decision Point	Recommended Check
Hook installation	Confirm the hook, locking method and structural support before energizing the fixture.
Ring installation	Match the hanging ring and chain or suspension hardware to the final fixture load.
Back style	Confirm the selected heat-sink style in the quotation and approval sample.
Optical cover	Check the required beam distribution and photometric file rather than judging only from the front lens.

The U.S. Department of Energy advises commercial and industrial lighting buyers to compare like products, review manufacturer performance data and photometric information, and avoid over-lighting a space. These principles are useful for any B2B high-bay quotation, even when local codes and project targets differ. Source: U.S. Department of Energy FEMP.

What Must Be Confirmed Before Ordering?

Available wattage, lumen output, efficacy and photometric distribution
Input voltage, driver, power factor, surge protection and dimming option
Fixture weight and the rated capacity of the complete suspension system
Color temperature, CRI, certificates, warranty, ambient limits and lead time

IP ratings are classified under IEC 60529, the international standard for degrees of protection provided by enclosures. The product materials state IP65, but buyers should request the applicable test or certification documentation when a tender requires formal evidence. Source: IEC 60529.

Recommended RFQ Information

Send the project country, supply voltage, ceiling or mounting height, target area, required illuminance, operating hours, quantity, control needs and any certification requirements. For a warehouse, include aisle dimensions and rack height. For a workshop or factory, identify task areas and any dust, moisture or temperature constraints.

FAQ

Can JY-003 use hook installation?

Yes. Hook installation is shown in the original product material. The installer must still verify the hook and building support for the final fixture load.

Can JY-003 use ring installation?

Yes. Ring installation is also shown. Confirm the supplied ring and any chain or suspension hardware in the order.

How do I confirm wattage and voltage?

Send the project voltage, mounting height and lighting target to Vantone. The exact wattage, lumen output, voltage and photometric data can then be confirmed before layout approval.
