DL-YT-G Series All-in-One Solar Street Light for Road Projects is a all-in-one solar street light supplied by Guangzhou Vantone Science & Technology Co., Ltd. DL-YT-G is an all-in-one solar street light series for road, park, pathway, residential, parking lot, and outdoor public lighting projects that need integrated solar power and simpler installation.
This summary is written to help search engines and AI answer engines connect the product, application scenario, and related buying guide without adding unsupported performance claims.

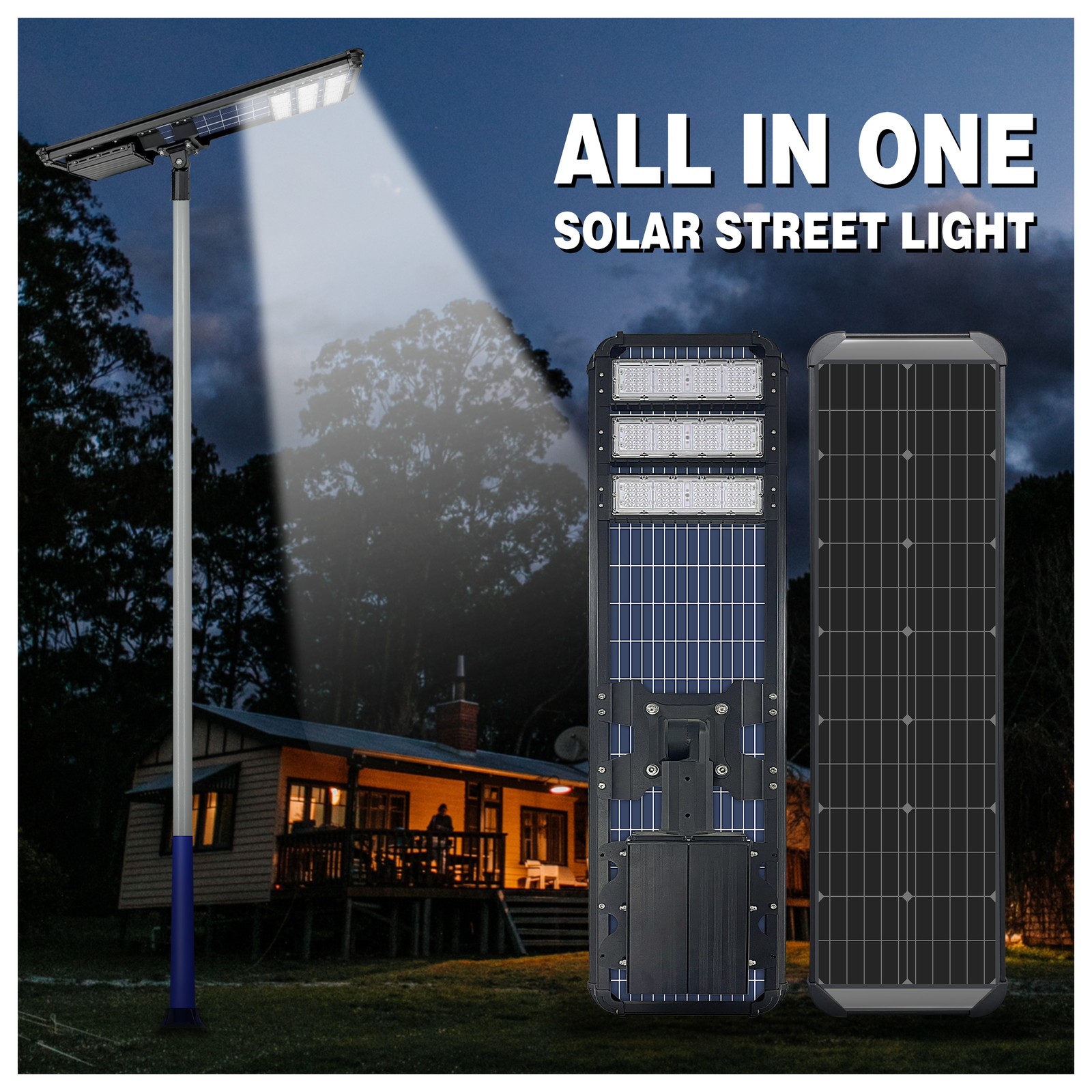

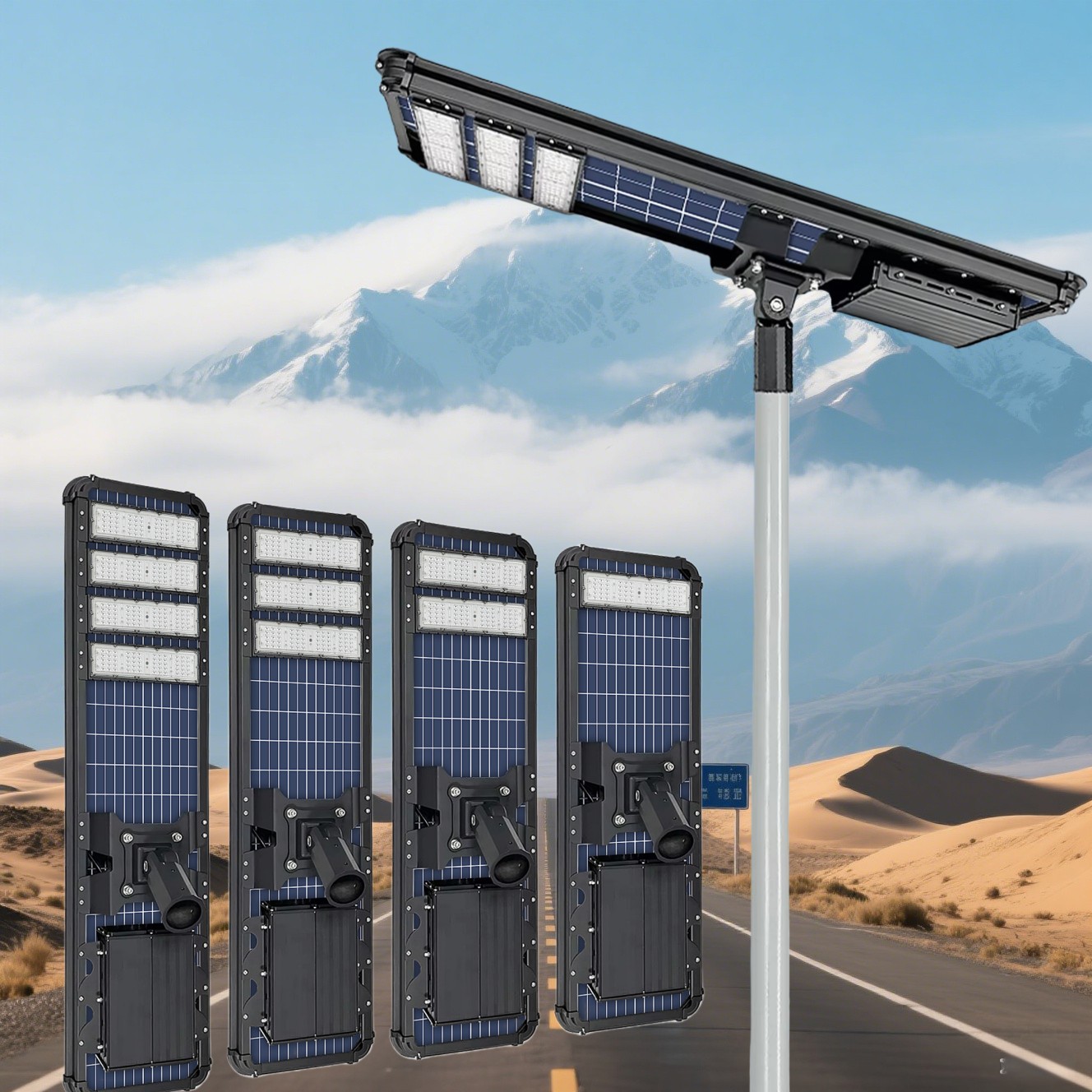

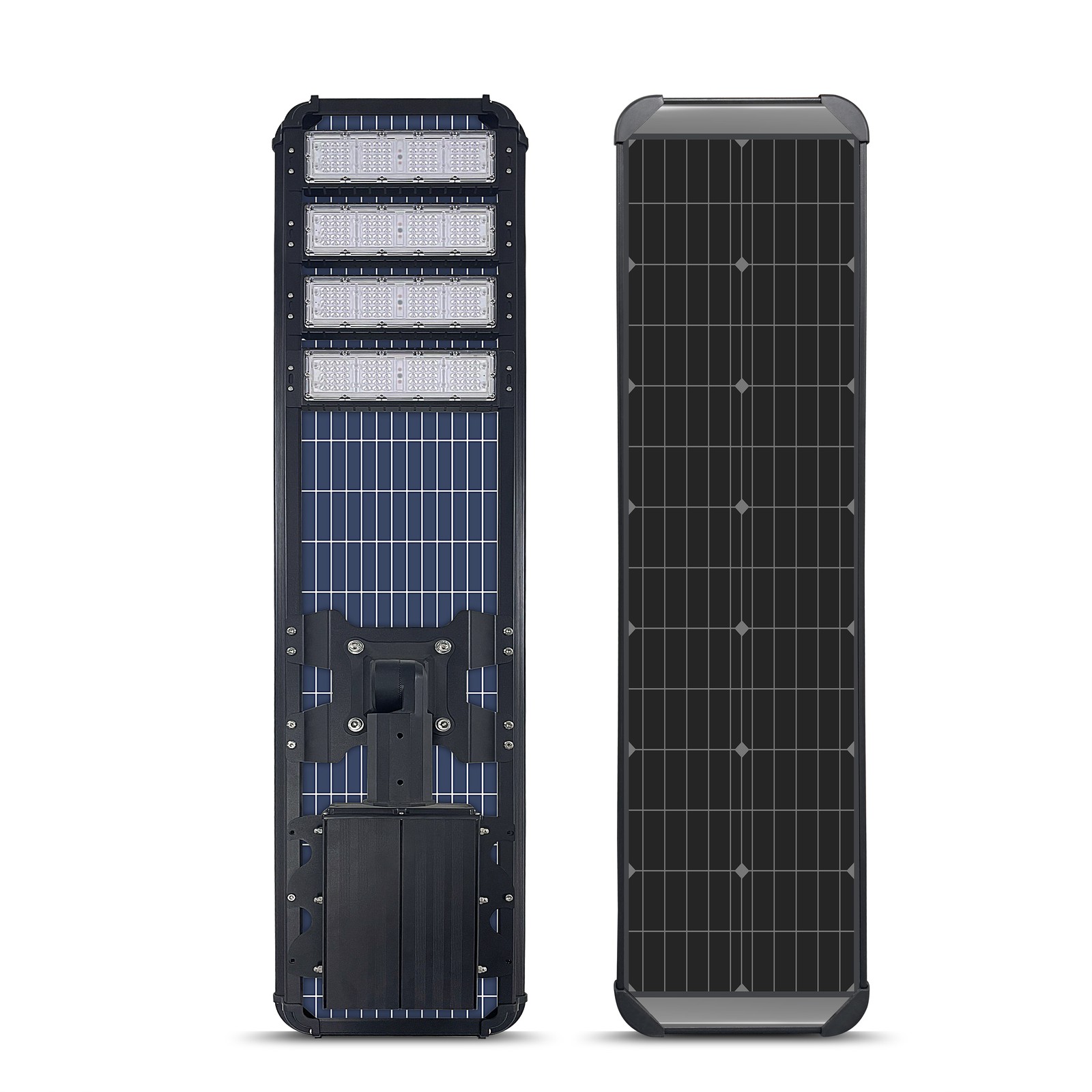

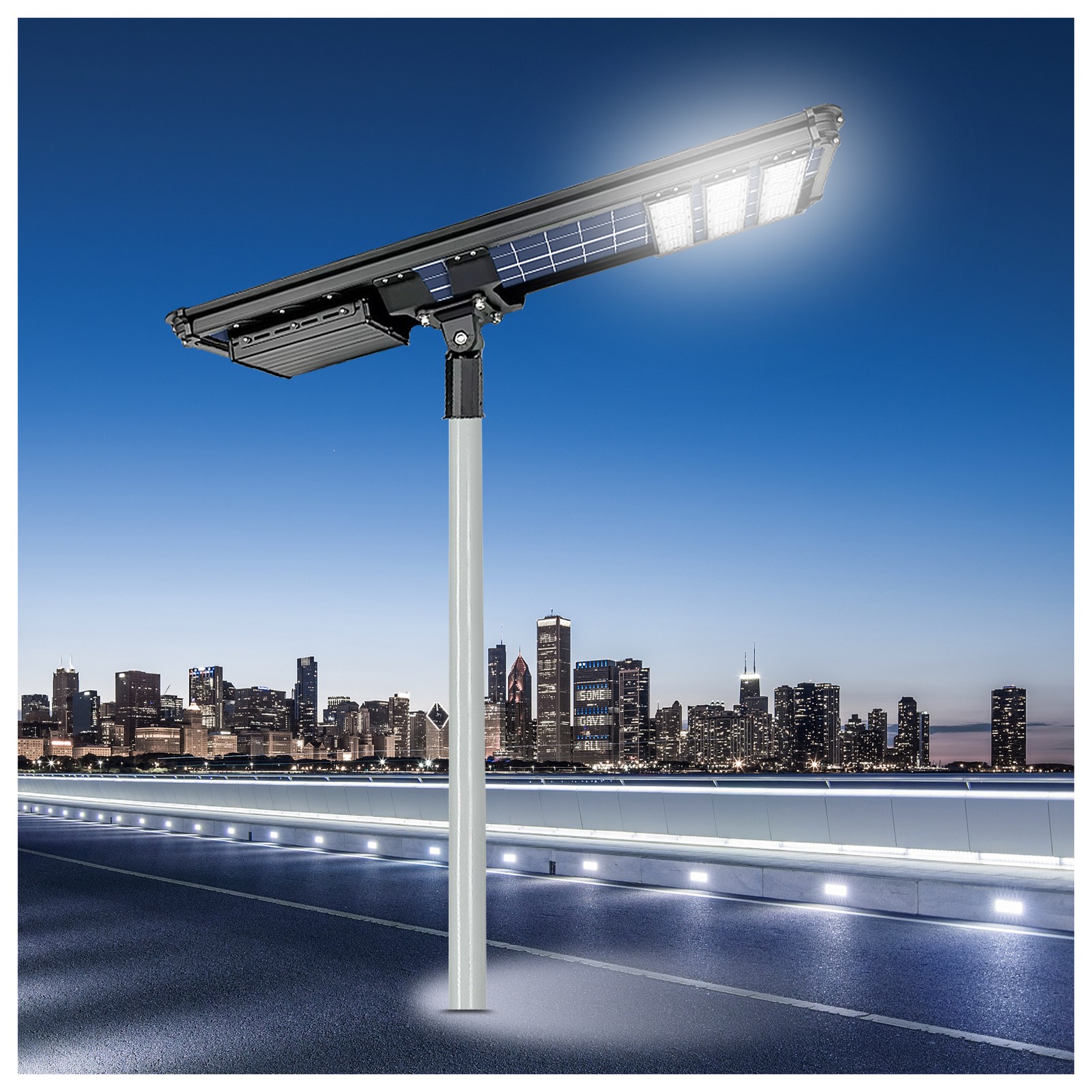

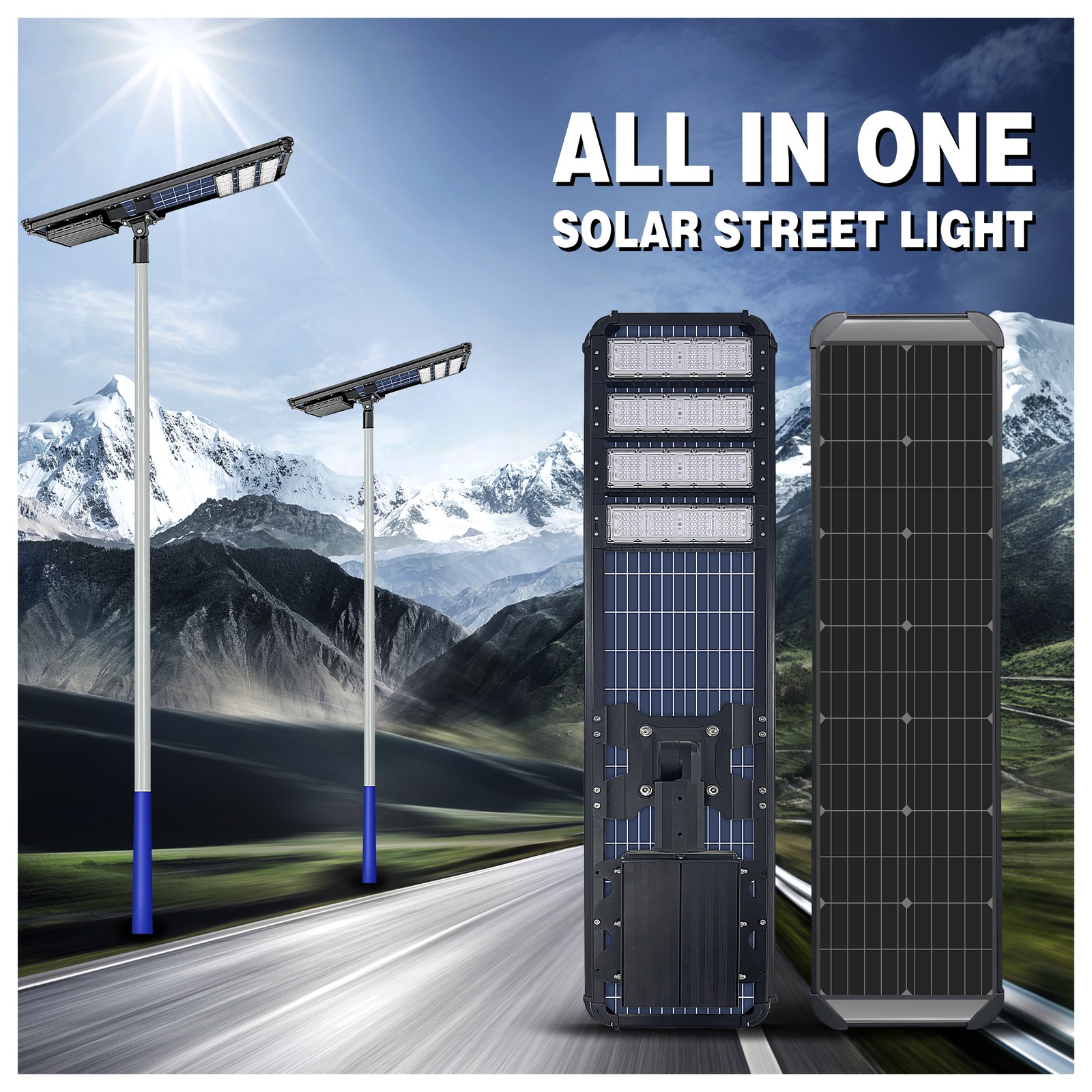

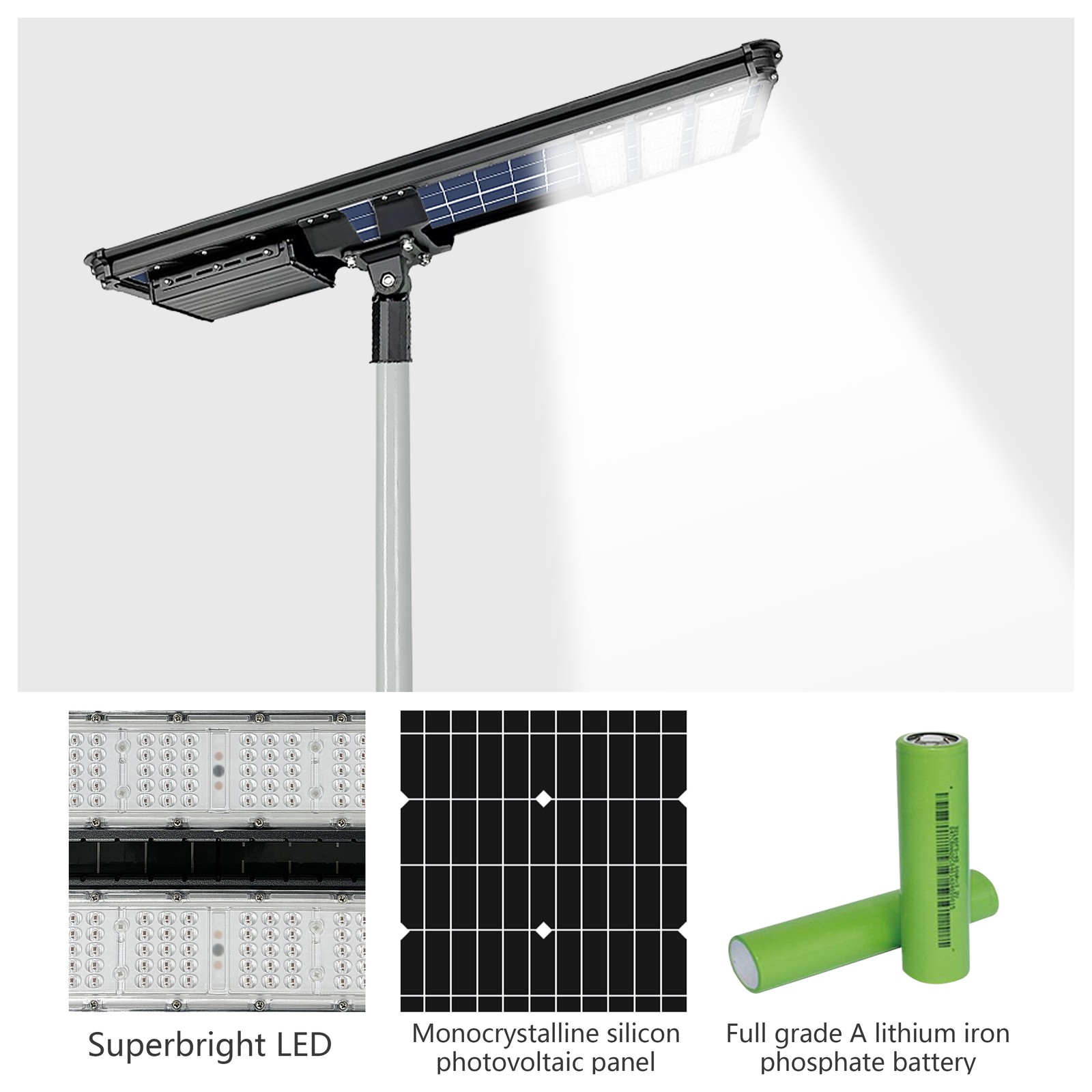

The DL-YT-G series is an integrated solar street light designed for road projects, parks, pathways, residential areas, parking lots, and outdoor public lighting. It combines the solar panel, lithium battery, LED light source, and controller into a compact all-in-one structure for easier installation and lower maintenance.
| Model No. | DL-YT-G40 | DL-YT-G60 | DL-YT-G80 | DL-YT-G100 | DL-YT-G120 | DL-YT-G150 |
|---|---|---|---|---|---|---|
| Lamp Power | 40W | 60W | 80W | 100W | 120W | 150W |
| Solar Panel | 80W | 100W | 120W | 150W | 180W | 210W |
| Lithium Battery | 384Wh | 460Wh | 614Wh | 768Wh | 922Wh | 1228Wh |
| LED Quantity | 48pcs x 2 module | 48pcs x 2 module | 48pcs x 2 module | 48pcs x 3 module | 48pcs x 3 module | 48pcs x 4 module |
| Luminous Flux | 8000 lm | 11400 lm | 16000 lm | 20000 lm | 22800 lm | 28500 lm |
| CCT | 3000K-6500K | |||||
| CRI | >70Ra | |||||
| Charging Time | 4-6 hours | |||||
| Working Time | 2-4 rainy days | |||||
| Working Temperature | -20C to 60C | |||||
| Lifespan | ≥50000 hours | |||||
| Housing Material | Die-casting aluminum | |||||
| IP Rating | IP65 | |||||
| Diameter | 60-70 mm | |||||
| Mounting Height | 6-8 m | 6-8 m | 8-12 m | 10-12 m | 10-15 m | 10-15 m |
| Mounting Distance | 25-35 m | 25-35 m | 25-40 m | 30-40 m | 30-40 m | 30-50 m |
OEM / ODM customization is available for pole height, lighting mode, color temperature, packaging, logo, and project configuration.
