Quick Answer
The JY-006 high bay LED lamp is offered in confirmed 100W, 150W and 200W options for LED warehouse lighting. This UFO LED high bay family uses SMD2835 LEDs, passive die-cast aluminum cooling, hook-and-chain suspension, 4000K or 6500K light, plus plug or bare-wire connections. Confirm the final cable length, plug, driver and protection rating before ordering.
JY-006 Key Product Facts
- 100W, 150W and 200W power choices
- AC220V input shown
- SMD2835 LED array
- Die-cast aluminum passive heat sink
- Hook and chain suspension with plug or bare-wire options
What Is High-Bay Lighting?
The Illuminating Engineering Society defines high-bay lighting as interior lighting where the roof trusses or ceiling are more than approximately 6.1 meters (20 feet) above the floor. That definition describes the space, not the correct wattage for every project. A buyer still needs mounting height, target illuminance, spacing and photometric distribution before approving a layout. Source: Illuminating Engineering Society.
Where Does JY-006 Fit?
JY-006 is intended for LED warehouse lighting, production workshops, parking garages, stations and indoor sports spaces using hook-and-chain suspension. A practical procurement decision starts with the task area and ceiling geometry, then checks the fixture configuration against structural, electrical and optical requirements.
JY-006 Product Specifications
| Item | Confirmed Value |
|---|---|
| Power Options | 100W, 150W and 200W |
| Input Voltage | AC220V shown |
| LED Type | SMD2835 |
| Housing | Die-cast aluminum radiator |
| Color Temperature | 4000K and 6500K shown |
| Installation | Hook and chain suspension |

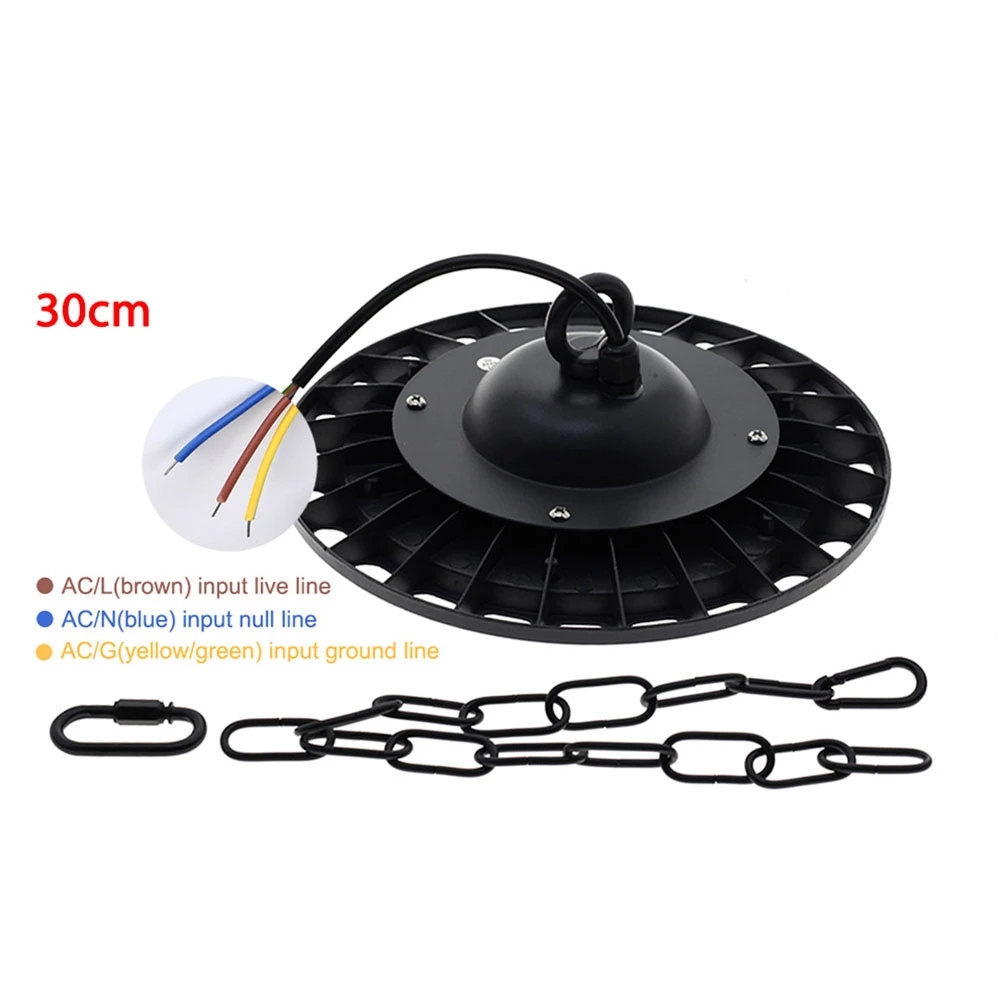

| Connection | EU or US plug cable, or three-core bare wire |
| Protection | Rainproof design shown; confirm required IP rating |
For a project quotation, confirm any specification not listed here—especially electrical, optical and control data—for the exact configuration being ordered.
How Should a Buyer Evaluate This Model?
| Decision Point | Recommended Check |
|---|---|
| Power | Choose between 100W, 150W and 200W only after confirming the lighting layout. |
| Voltage | The displayed configuration is AC220V; confirm the project supply before quotation. |
| Cable | Specify the plug standard or bare-wire connection and confirm the required cable length. |
| Suspension | Rate the hook, chain and support point for the final fixture and cable arrangement. |
The U.S. Department of Energy advises commercial and industrial lighting buyers to compare like products, review manufacturer performance data and photometric information, and avoid over-lighting a space. These principles are useful for any B2B high-bay quotation, even when local codes and project targets differ. Source: U.S. Department of Energy FEMP.
What Must Be Confirmed Before Ordering?
- Lumen output, efficacy, beam angle and photometric file for each wattage
- Exact input range, driver, power factor, surge protection and dimming
- Required plug standard, cable length, wiring method and chain hardware
- IP rating, CRI, certificates, warranty, ambient limits and lead time
IEC 60529 classifies degrees of protection provided by enclosures. The supplied JY-006 materials show a rainproof lamp body but do not state a confirmed IP code, so buyers should request the exact rating and supporting evidence required for the project. Source: IEC 60529.
Recommended RFQ Information
Send the project country, supply voltage, ceiling or mounting height, target area, required illuminance, operating hours, quantity, control needs and any certification requirements. For a warehouse, include aisle dimensions and rack height. For a workshop or factory, identify task areas and any dust, moisture or temperature constraints.
FAQ
Which power options are shown for JY-006?
The product materials show 100W, 150W and 200W versions.
Can JY-006 be ordered with a plug?
EU and US plug options are shown, together with a three-core bare-wire option. Confirm the plug standard and cable length in the quotation.
Is an IP rating confirmed for JY-006?
The supplied material shows a rainproof body but does not state a confirmed IP code. Request the exact rating and test evidence required by the project.
Sources and Product Reference
- JY-006 product page
- U.S. Department of Energy: Commercial and Industrial LED Luminaire Purchasing Guidance
- Illuminating Engineering Society: High-Bay Lighting Definition
- IEC 60529: Degrees of Protection Provided by Enclosures
View Product Details
Review product images, confirmed specifications, available options and quote details for the JY-006 high bay LED lamp.
Open Product Page ›
