Quick Answer
The JY-005 family offers three slim high bay LED lights in confirmed 100W, 150W and 200W models. These UFO LED lights use CREE LEDs, ADC12 die-cast aluminum housings, IP65 protection, a 120-degree beam and ring suspension. Select the body size and wattage only after checking mounting height, target illuminance, spacing and photometric data for the LED warehouse lighting project.
JY-005 Key Product Facts
- 100W, 150W and 200W model range
- CREE LED chip stated for all three models
- ADC12 die-cast aluminum housing
- IP65 enclosure rating
- 120-degree beam and ring suspension mounting
What Is High-Bay Lighting?
The Illuminating Engineering Society defines high-bay lighting as interior lighting where the roof trusses or ceiling are more than approximately 6.1 meters (20 feet) above the floor. That definition describes the space, not the correct wattage for every project. A buyer still needs mounting height, target illuminance, spacing and photometric distribution before approving a layout. Source: Illuminating Engineering Society.
Where Does JY-005 Fit?
JY-005 is intended for LED warehouse lighting, high workshops, gyms, exhibition halls, express sorting areas and logistics facilities needing 100W, 150W or 200W UFO LED lights. A practical procurement decision starts with the task area and ceiling geometry, then checks the fixture configuration against structural, electrical and optical requirements.

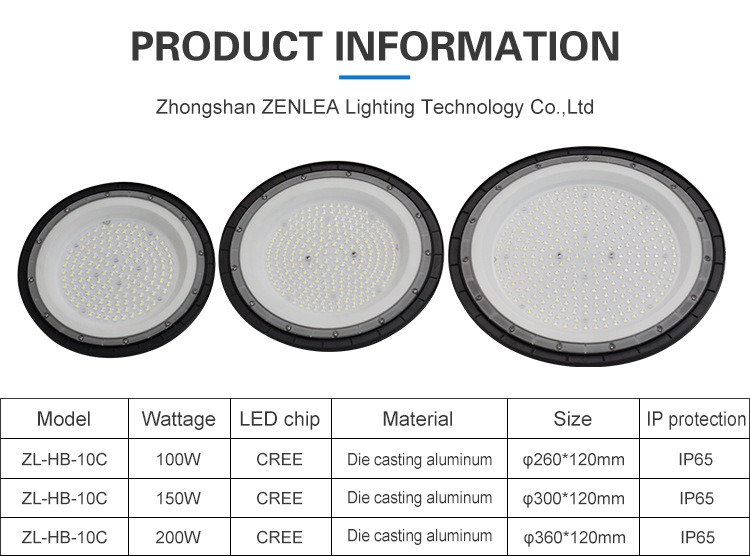

JY-005 Product Specifications
| Model | Power | LED Chip | Dimensions | IP Rating |
|---|---|---|---|---|
| ZL-HB-10C | 100W | CREE | Diameter 260 x H120 mm | IP65 |
| ZL-HB-10C | 150W | CREE | Diameter 300 x H120 mm | IP65 |
| ZL-HB-10C | 200W | CREE | Diameter 360 x H120 mm | IP65 |
For a project quotation, confirm any specification not listed here—especially electrical, optical and control data—for the exact configuration being ordered.
How Should a Buyer Evaluate This Model?
| Decision Point | Recommended Check |
|---|---|
| Power and body size | Compare the 260, 300 and 360 mm body diameters with mounting clearance and required output. |
| Suspension point | Rate the ring, chain and building support for the selected fixture size and weight. |
| Beam | Use the 120-degree distribution in a project lighting calculation rather than selecting by wattage alone. |
| Surge protection | A 20 kV external protection module is shown; confirm whether it is included and suitable for the project voltage. |
The U.S. Department of Energy advises commercial and industrial lighting buyers to compare like products, review manufacturer performance data and photometric information, and avoid over-lighting a space. These principles are useful for any B2B high-bay quotation, even when local codes and project targets differ. Source: U.S. Department of Energy FEMP.
What Must Be Confirmed Before Ordering?
- Lumen output, efficacy and photometric file for the selected wattage
- Input voltage, driver details, power factor, surge protection and dimming
- Color temperature, CRI, fixture weight and suspension hardware
- Certificates, warranty terms, ambient limits, quantity and lead time
IP ratings are classified under IEC 60529, the international standard for degrees of protection provided by enclosures. The product materials state IP65, but buyers should request the applicable test or certification documentation when a tender requires formal evidence. Source: IEC 60529.
Recommended RFQ Information
Send the project country, supply voltage, ceiling or mounting height, target area, required illuminance, operating hours, quantity, control needs and any certification requirements. For a warehouse, include aisle dimensions and rack height. For a workshop or factory, identify task areas and any dust, moisture or temperature constraints.
FAQ
Which JY-005 powers are listed?
The supplied table lists 100W, 150W and 200W models with different body diameters.
Do all JY-005 models use the same body size?
No. The listed sizes are 260 x 120 mm for 100W, 300 x 120 mm for 150W and 360 x 120 mm for 200W.
Does JY-005 use ring suspension?
Yes. A rear fishing-ring mounting point is shown. Confirm the chain, connector and structural support for the final fixture load.
