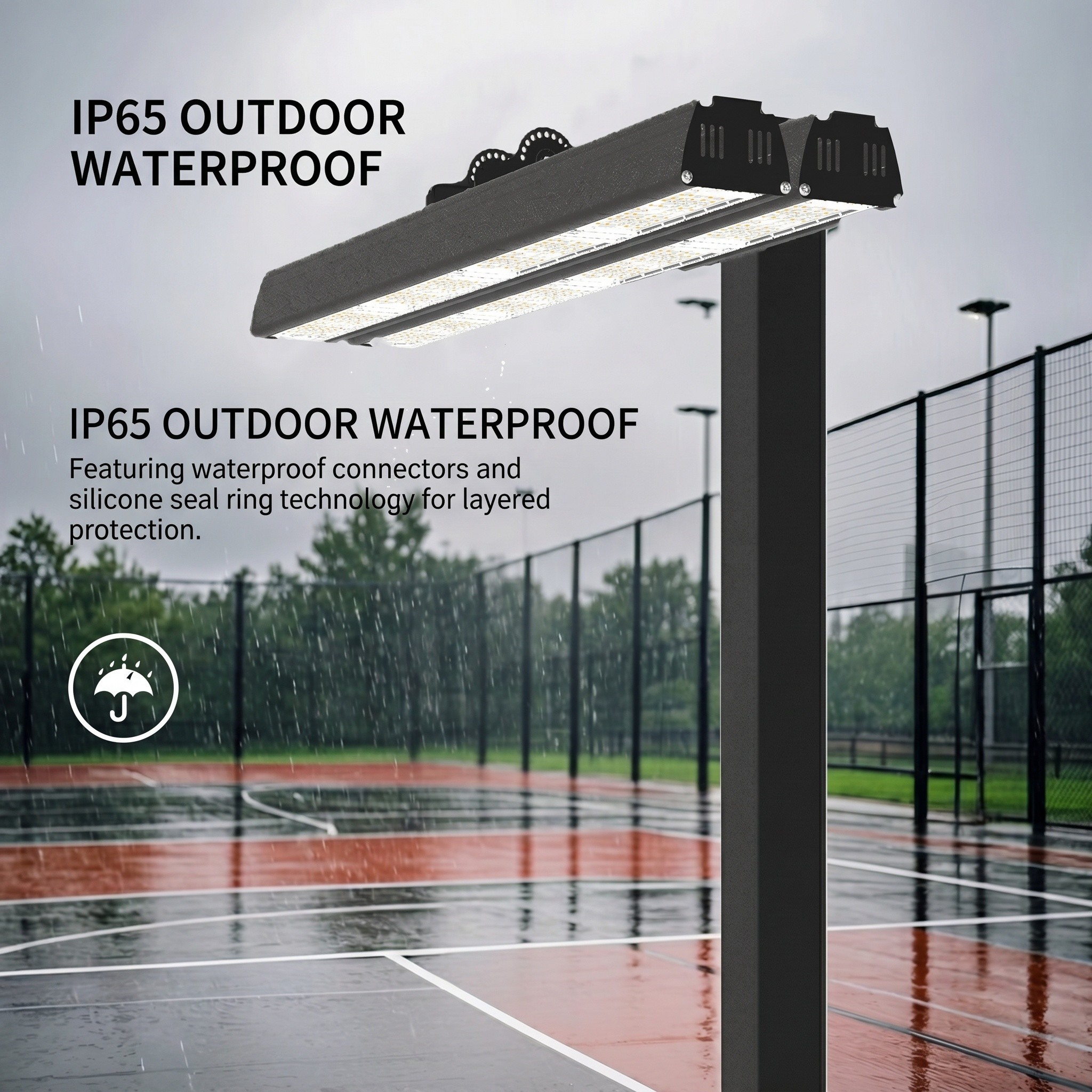

Pickleball lights outdoor should be specified around the playing level, uniformity, pole positions, glare boundaries, local code, operating schedule and weather exposure. BD-004 is a 200W IP65 linear court fixture with asymmetric anti-glare optics and an adjustable bracket. The controlled distribution is intended to put light on the court while limiting wasted spill beyond the fence.
USA Pickleball's official lighting page notes that required light depends on player skill level and that uniformity is as important as the amount of light. DarkSky's outdoor sports criteria add useful design principles: target the field, limit uplight and offsite glare, document calculations and use automatic plus dimming controls. Local codes and the authority having jurisdiction remain mandatory.
The RFQ should state court count, class of play, fence and gate locations, nearby homes, pole setback, mounting-height limits, supply voltage and curfew. Require a plan-view calculation that reports the average, minimum and uniformity over each court. Also request vertical or glare views toward neighboring property and player positions. A compliant-looking fixture can still produce a poor result if poles and aiming are wrong.
Pole foundations must avoid drainage, utilities and accessible routes. The structural engineer should review wind load, bracket area and local soil. Mounting higher can improve distribution and reduce the number of intense visual sources, but it changes pole cost and spill-light geometry. BD-004's adjustable bracket supports commissioning, yet the approved tilt angle should be recorded and locked after measurement.
BD-004 uses a 200W Lumileds LED source, AC110-265V input and an approximately 7 kg, 1010 x 103 x 130 mm housing. Driver options include Gorida, Inventronics and Mean Well. IP65 protection supports outdoor use, while the asymmetric optic is especially relevant where fixtures are mounted along court sides and aimed across the playing surface.
Review the full product page for images, configurations and quotation details: BD-004 200W IP65 LED Pickleball and Badminton Court Light.
| Model | GRD-PK200 / BD-004 |
|---|---|
| Power | 200W |
| Ingress protection | IP65 |
| Input voltage | AC110-265V |
| Fixture size | 1010 x 103 x 130 mm |
| Weight | Approx. 7 kg |
| Driver options | Gorida / Inventronics / Mean Well |
These are product-family specifications, not a finished lighting design. Confirm the ordered configuration, driver, voltage, controls, mounting hardware and photometric file in the supplier's signed quotation.
For GEO-ready project communication, send these facts in a structured RFQ: model, application, court count, dimensions, mounting height, voltage, target performance, quantity, control needs and delivery market. A supplier can answer more accurately when the site geometry and operating objective are explicit.
Define the class of play, maintained level, uniformity, glare limits, pole safety, controls and local-code requirements. The design must be verified for the actual court geometry.
There is no universal number. Court count, pole height, fixture distribution, setbacks and target uniformity determine the layout.
IP65 is a useful enclosure rating, but buyers should also check corrosion exposure, surge protection, bracket strength, seals, drainage and maintenance access.
An asymmetric distribution can project light forward across the court from side poles while reducing wasted backlight. Correct aiming and a photometric report are still essential.
Yes where permitted and practical. Controls can keep inactive courts off, provide lower practice levels and enforce community curfews.
